Skil

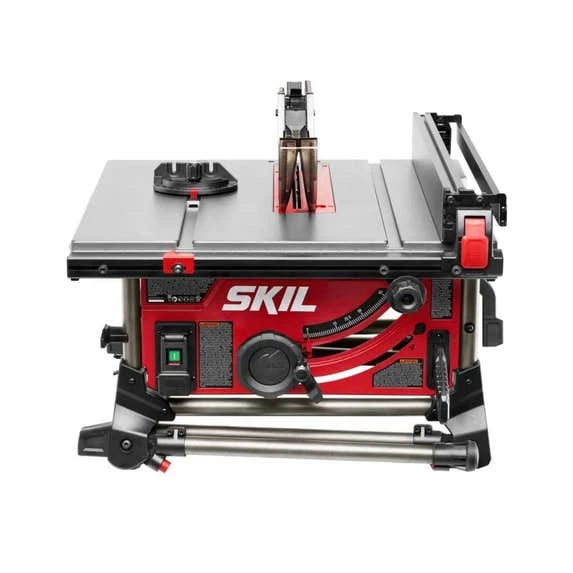

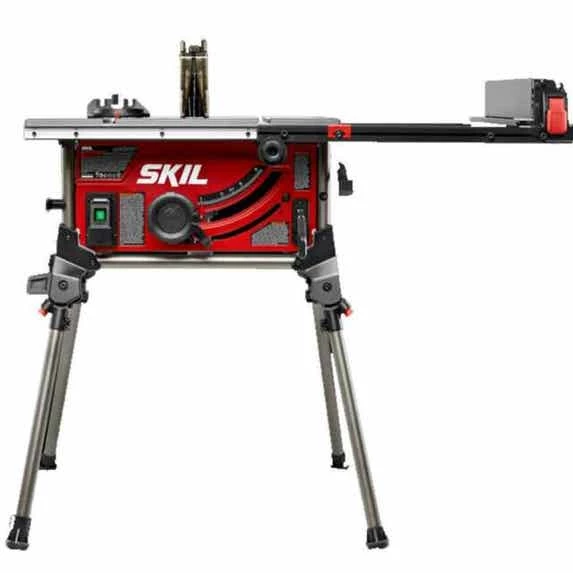

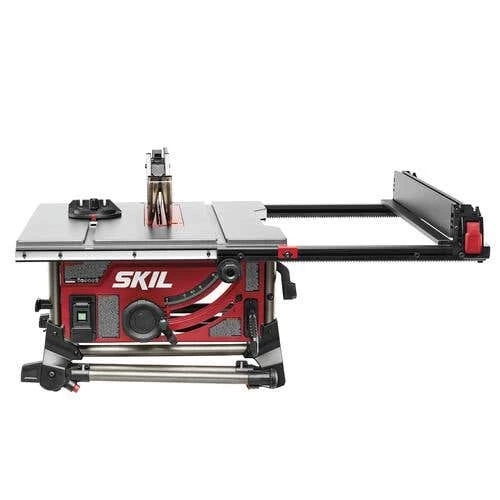

15 Amp 10″ Table Saw TS6307-00
The SKIL TS6307-00 10″ Jobsite Table Saw has a 25-1/2″ (64.77cm) Rip Capacity and is equipped with a 15-Amp motor, integrated foldable legs, rack & pinion fence rails, and a dust port elbow to keep your jobsite clean. The 15-Amp motor quickly rips through hardwoods with ease, while the rack & pinion fence rails make fence adjustments fast, smooth, and accurate. The integrated foldable legs seamlessly form into a folding stand to provide portability and convenience, while the dust port elbow systematically redirects dust to a container for easy cleanup. This table saw features a safety anti-restart switch in case of power outages. This large coated cast aluminum tabletop saw comes equipped with a 10″ 24-tooth carbide blade. When using a dado insert, this table saw requires an 8 in. dado blade set.
FEATURES:
- RACK AND PINION FENCE RAILS – Ensures fence stays parallel to blade for fast, smooth, and accurate cuts.

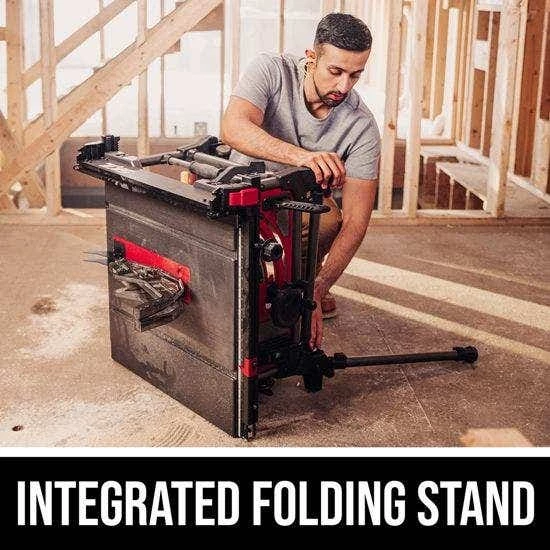

- INTEGRATED FOLDING STAND – Legs quickly fold in to provide portability and convenient storage.
- PARALLEL BLADE ALIGNMENT – Available micro-adjustment of blade so that it is parallel to rip fence and miter slot.
- 4×4 CUTTING CAPACITY – Cuts material up to 4×4 at 90 degrees.
- -2-47° BEVEL CAPACITY – Cuts between two positive stops at 0 and 45 degrees with quick release lever.
- DUST PORT ELBOW – Redirects dust to a container for easy cleanup.
SPECIFICATIONS:
| Blade Arbor Hole Diameter | 5/8 IN. |
| Blade Diameter | 10 IN. |
| Max. Cutting Depth – 0° Bevel | 3.5 IN. |
| Max. Cutting Depth – 45° Bevel | 2.5 IN. |
| Max. RIP of Left of Blade | 14 IN. |
| Max. RIP of Right of Blade | 25.5 IN. |
| Max. Width of Dado | 5/8 IN. |
| Max. bevel angle (°) | -2°~47° |
| No Load Speed | 4600 RPM |
| Tool Current Rating | 15 Amps |
| Table Width | 24 IN. |
| Table Length | Â 25 IN. |
| Table Height (unfolded) | 32 IN. |
Â
INCLUDES:
(1) Table saw w/ integrated folding stand
(1) blade guard
(1) push stick
(1) miter gauge
(1) anti-kickback pawl
(1) dust port elbow
(2) wrenches
(1) riving knife
(1) rip fence
(1) 24T blade
(1) drive knob with washer and hex screw
