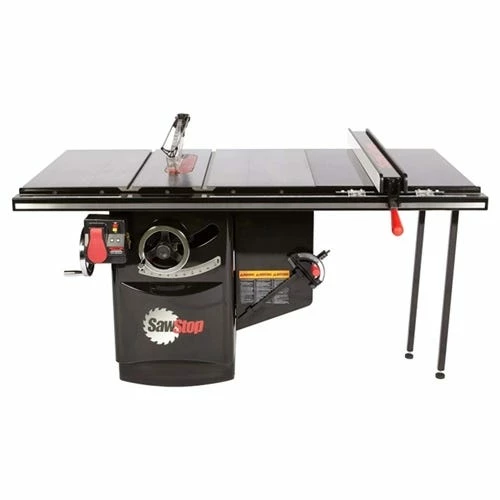

Sawstop Table Saws SawStop 7.5HP, 3PH, 230V Industrial Cabinet Saw 36″ T-Glide Fence ICS73230-36

SawStop

7.5HP; 3PH; 230V Industrial Cabinet Saw w/ 36 T-Glide Fence ICS73230-36

The SawStop Industrial Cabinet Saw is the definition of industrial grade. It is the heaviest; most powerful and highest quality 10″ cabinet saw available. The 7.5HP; 3ph; 230v configuration with a 36″ Industrial T-Glide Fence Assembly offers the durability; versatility; and the peace of mind only SawStop’s patented safety system can provide.

FEATURES:

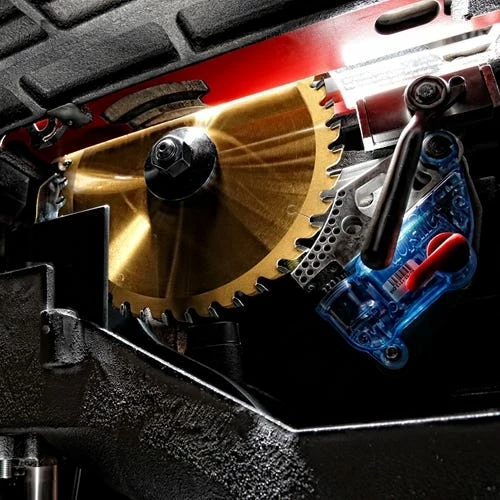

• Patented SawStop Safety System stops on contact with skin.

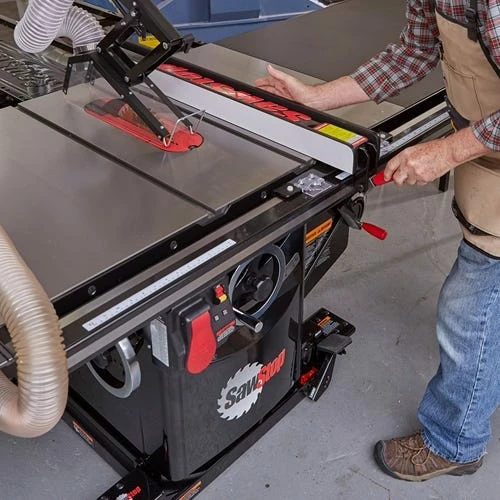

• 36″ rip capacity & Industrial T-Glide Fence Assembly provides smooth operation; precision measurement and sure lockdown without deflection.

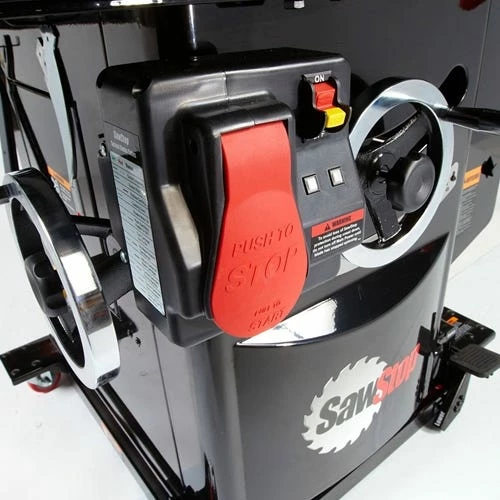

• Easy Reach Start and Stop Switch.
• 7.5 HP; 3 phase; 230v; 17.8 A; 60Hz; TEFC.

SPECIFICATIONS:

Blade diameter	10″
Blade tilt	Left
Max. depth of cut	3-1/8″ at 0º; 2-1/4″ at 45º
Dado diameter	8″ (requires a separate brake cartridge and insert)
Dado max. width	13/16
Arbor diameter at blade	5/8″
Dust collection port diameter	4″
Hand wheels	8″ diameter; cast iron w/ chrome handle
Blade alignment with miter slot	0.010″ Maximum displacement

INCLUDES:

• (2) CAST IRON EXTENSION WINGS
• (1) DUST COLLECTION BLADE GUARD
• (1) MITER GAUGE
• (1) RIVING KNIFE
• (2) BLADE WRENCHES
• (1) PUSH STICK
• (1) 10” BLADE
• (1) TABLE INSERT
• (1) STANDARD BRAKE CARTRIDGE
• (2) HARDWARE PACKS
• (1) 3MM; 5MM & 8MM HEX KEY
• (1) BLADE SPACING ADJUSTMENT GAUGE

“
