Sawstop Table Saws SawStop 3HP, 1PH, 230V Industrial Cabinet Saw 52″ T-Glide Fence ICS31230-52

SawStop

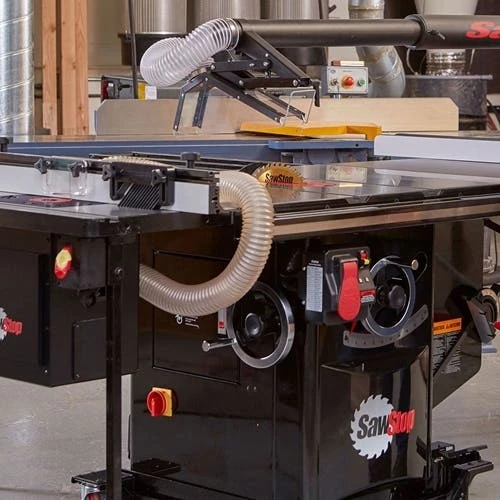

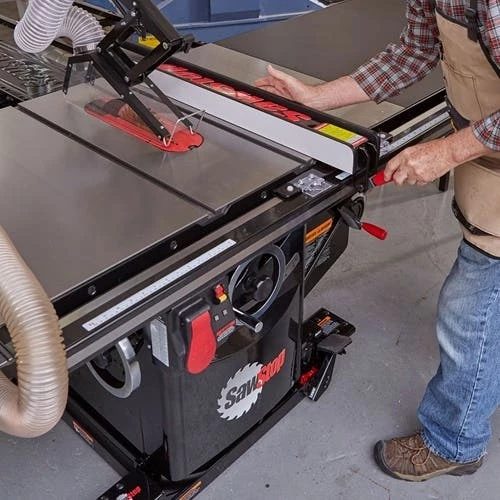

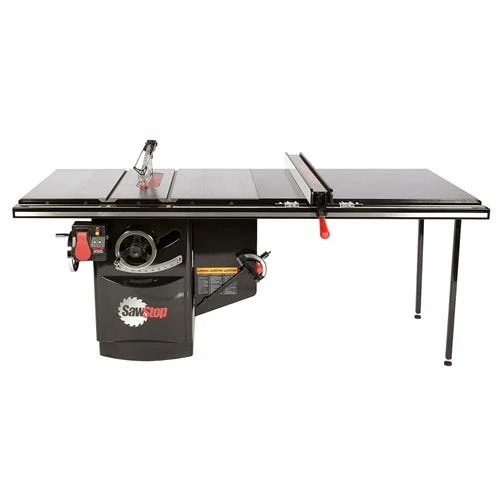

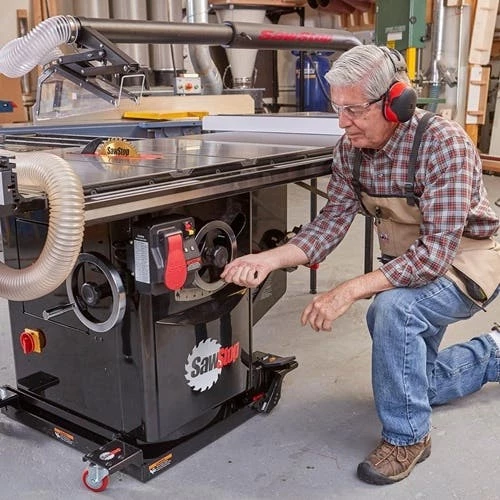

3 HP Single Phase Industrial Cabinet Saw with 52 T-Glide Fence ICS31230-52

The SawStop Industrial Cabinet Saw is the definition of industrial grade. It is the heaviest; most powerful and highest quality 10″ cabinet saw available. The 3HP; 1ph; 230v configuration with a 52″ Industrial T-Glide Fence Assembly offers the durability; versatility; and the peace of mind only SawStop’s patented safety system can provide.

FEATURES:

• Patented Safety System.
• 99% Dust Collection System.
• Fast Blade Height Adjustment.
• Easy Reach Start and Stop Switch.
• Durable Powder Coat Finish.
• Machined Cast Iron Table.
• Large 4″ Dust Port.
• Smooth Cranking Height and Tilt Adjustments.
• Available Integrate Mobile Base (Not Standard Equipment).
• Fast; tool-less insert.

SPECIFICATIONS:

Model Option 2	Industrial 52″: 52″ rip capacity & T-Glide Fence Assembly
Motor configuration 1	ICS31230: 3 HP; 1 phase; 230v; 13 A
Cabinet footprint	W: 20″ x D: 25″
Cast iron table	W: 24″ x D: 30″
Cast iron table (w/ extension wings)	W: 44″ x D: 30″
Extension wings	W: 10″ x D: 30″ each
Extension table 52 in	W: 40″ x D: 30″
Shipping dimensions (saw body only)	W: 40″ x D: 40″ x H: 40″
Weight: table saw only	530 lbs
Weight: w/ 52 in fence systems	685 lbs
Shipping weight	640 lbs (table saw only)
Blade	Prof. grade; 5/8″ arbor
Blade Diameter	10″
Max. depth of cut; blade at 0º	3-1/8″
Max. depth of cut; blade at 45º	2-1/4″
Max. rip; right of blade – 52 in	52-1/2″ (w/ optional 52″ rails)
Max. rip; left of blade	12-1/2″
Dust collection port diameter	4″

INCLUDES:

• (1) Miter Gauge
• (1) Dust Collection Blade Guard
• (1) Riving Knife
• (1) Push Stick
• (1) 10” Blade
• (1) Standard Brake Cartridge
• (1) Owner’s Manual
• (1) 3mm Hex Key
• (1) 5mm Hex Key
• (1) 8mm Hex Key
• (1) Blade Spacing Adjustment Gauge
• (2) Cast Iron Extension Wings
• (2) Blade Wrenches
• (2) Hardware Packs

“
