Sawstop Table Saws SawStop 30″ In-Line Cast Router Table Assembly For ICS Table Saws RT-TGI

SawStop

30 In-Line Cast Router Table Assembly for ICS Table Saws RT-TGI

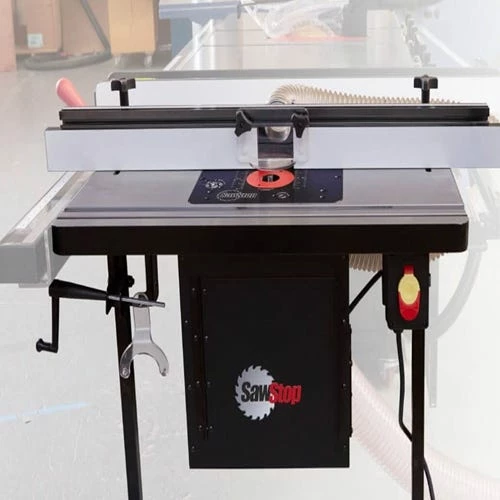

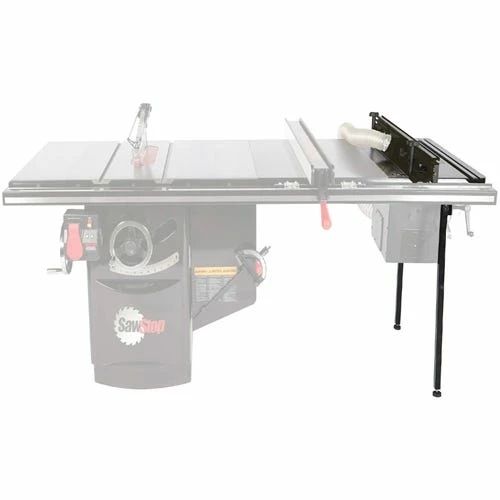

Enjoy the flatness and stability of a full-featured cast iron router table while also maximizing floor space in your shop. The SawStop RT-TGI Table attaches to your SawStop ICS table saw (sold separately); turning it into a central machining station capable of a huge variety of tasks from rough dimensioning to detail routing. The router table has precision-machined slots; an external power switch for your router; two support legs; and an extruded fence with adjustable faces; jointing shims; a 2-1/4″ dust port and adjustable scales. Mount it on either the left or the right of your saw.

FEATURES:

• Maximizes floor space and work support by combining your router table and table saw.
• Cast iron construction matches your table saw in stability and ability to absorb vibration.
• Compatible with various optional routing accessories like featherboards; flip stops and more.
• May be installed on the left or right side of SawStop ICS table saws only.

SPECIFICATIONS:

Cast Iron Table Dimensions	30″ x 16″
Router Table Opening	11-3/4″ x 9-1/4″
Max Fence Travel	5-1/2″
Front T-slot to Arbor Center	6-1/2″
Front Miter T-slot	3/4″ at top; 1″ at bottom; 3/8″ deep
Rear T-slot to Arbor Center	5″
Rear Miter T-slot	1/4″ at top; 11/32″ at bottom; 7/32″ deep
Fence Length	35-3/4″
Fence Height	3-1/2″
Fence Depth	4″

INCLUDES:

• (1) Cast iron router table
• (1) Power switch
• (1) Extruded fence with adjustable faces
• (1) Set of jointing shims
• (1) 2-1/4″ dust port
• (1) Bit guard
• (2) Support legs

“
