Sawstop Table Saws SawStop 1.75HP Professional Cabinet Saw 52″ T-Glide Fence PCS175-TGP252

SawStop

1.75 HP Single Phase Professional Cabinet Saw with 52 T-Glide Fence PCS175-TGP252

The SawStop 10″ Professional Cabinet Saw provides superior performance to meet the demands of discerning craftsmen and woodworkers. With SawStop’s legendary safety system; ground breaking 99% dust collection and peerless fit and finish it’s ready to help you get the job done.

FEATURES:

• Patented Safety System.
• 99% Dust Collection System.
• Fast Blade Height Adjustment.
• Easy Reach Start and Stop Switch.
• Durable Powder Coat Finish.
• Machined Cast Iron Table.
• Large 4″ Dust Port.

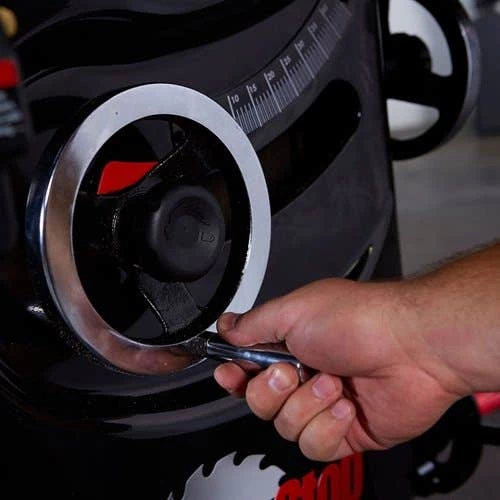

• Smooth Cranking Height and Tilt Adjustments.
• Available Integrate Mobile Base (Not Standard Equipment).
• Fast; tool-less insert.

SPECIFICATIONS:

Model Option 3	PCS175 or PCS31230 -TGP252: 52″ rip capacity & T-Glide Fence Assembly
Cabinet footprint	W: 19-3/8″ x D: 19-3/8″
Cast iron table	W: 20″ x D: 27″
Cast iron table (w/ extension wings)	W: 44″ x D: 27″
Extension wings	W: 12″ x D: 27″ each
Extension table 52 in	W: 40 1/8″ x D: 27″
Shipping dimensions (saw body only)	W: 43″ x D: 31″ x H: 30″
Weight: table saw only	317 lbs
Weight: w/ 52 in fence systems	431 lbs
Shipping weight	390 lbs (table saw only)
Blade	40-tooth; prof. grade; 5/8″ arbor
Blade Diameter	10″
Max. depth of cut; blade at 0º	3-1/8″
Max. depth of cut; blade at 45º	2-1/4″
Max. rip; right of blade – 52 in	52″ (w/ 52″ rails)
Max. rip; left of blade	12″
Dust collection port diameter	4″

INCLUDES:

• (1) Miter Gauge
• (1) Micro Blade Guard (1.75HP Models)
• (1) Riving Knife
• (1) Push Stick
• (1) 10” Blade
• (1) Standard Brake Cartridge
• (1) Owner’s Manual
• (1) 3mm Hex Key
• (1) 5mm Hex Key
• (1) 8mm Hex Key
• (1) Blade Spacing Adjustment Gauge
• (2) Cast Iron Extension Wings
• (2) Blade Wrenches
• (2) Hardware Packs

“
