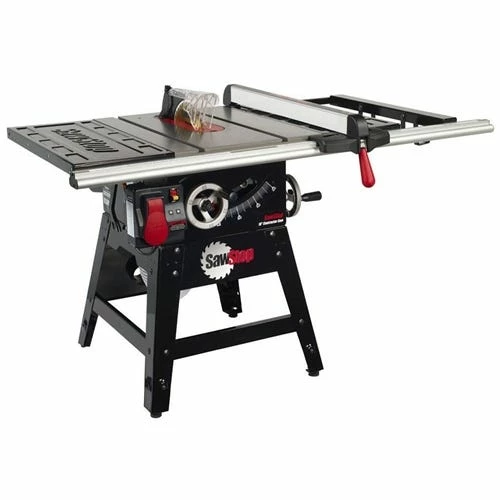

Sawstop Table Saws SawStop 1.75HP Contractor Saw 30″ Standard Fence CNS175-SFA30

SawStop

1-3/4 HP Contractor Saw with 30-Inch Aluminum Extrusion Fence and Rail Kit CNS175-SFA30

The SawStop Contractor Saw offers versatility and safety. Whether on the job site or in the shop; it delivers the performance you need with the peace of mind only SawStop’s patented safety system can provide.

FEATURES:

• Patented Safety System.
• Fast Blade Height Adjustment.
• Easy Reach Start and Stop Switch.
• Durable Powder Coat Finish.
• Machined Cast Iron Table.
• Large 4 Dust Port.
• Smooth Cranking Height and Tilt Adjustments.
• Available Integrated Mobile Base (Not Standard Equipment).
• Available Integrated Mobile Cart (Not Standard Equipment).
• Fast; tool-less insert.

SPECIFICATIONS:

Motor: (all 60Hz; TEFC)	1.75 HP
Max. depth of cut; blade at 0º	3-1/8″
Max. depth of cut; blade at 45º	2-1/4″
Max. rip; right of blade – 30 in	30-1/2″ (w/ 30″ rails)
Max. rip; left of blade	16-1/2″ (w/ 30″ Std. Fence)
Cabinet footprint	W: 25-3/4″ x D: 27″
Cast iron table	W: 20″ x D: 27″
Cast iron table (w/ extension wings)	W: 44″ x D: 27″ (w/opt. cast iron wings)
Extension wings	W: 12″ x D: 27″ each
Blade	40-tooth; prof. grade; 5/8″ arbor
Blade diameter	10″
Blade tilt	Left
Blade plate thickness	0.078″ (2mm)
Dust collection port diameter	4″ under table top
Miter slots info	5 1/2″ (arbor flange to center of right slot)
Belts	V-ribbed belt – static dissipative
Riving knife / splitter thickness	0.090″ (2.3 mm)
Weights – w/ 30 in fence systems	245 lbs
Weights – table saw only	225 lbs

INCLUDES:

• (1) Miter Gauge
• (1) Micro Blade Guard
• (1) Riving Knife
• (1) Push Stick
• (1) 10” Blade
• (1) Standard Brake Cartridge
• (1) Owner’s Manual
• (1) Assembly Instructions
• (1) 3mm Hex Key
• (1) 5mm Hex Key
• (1) 8mm Hex Key
• (1) Blade Spacing Adjustment Gauge
• (2) Steel Extension Wings
• (2) Blade Wrenches
• (2) Hardware Packs
