Power Team

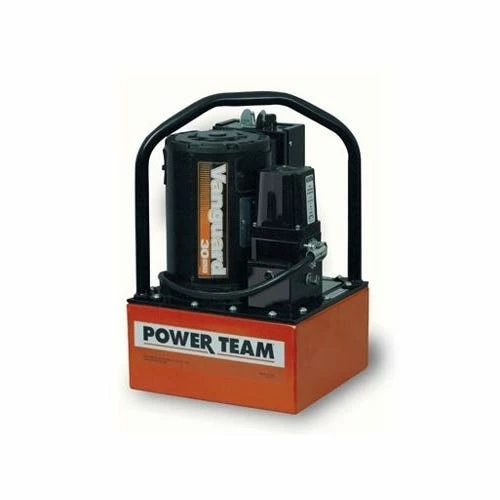

Electric Hydraulic Pump – Double Acting PE304R-2

FEATURES:

• Deliver a powerful punch to operate single-acting or double-acting cylinders.

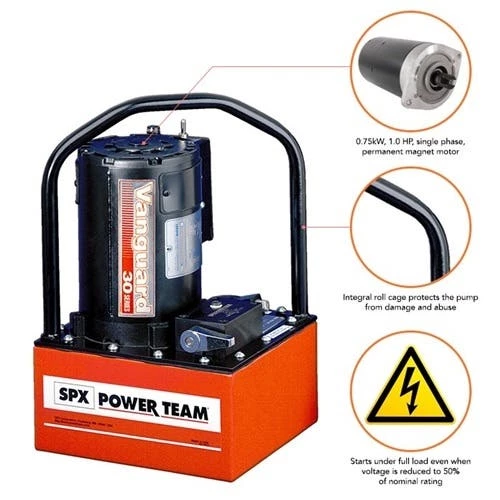

• Integral roll cage protects pump from abuse.
• 1 hp; single phase; permanent magnet motor.
• Starts under full load even when voltage is reduced to 50% of nominal rating.
• High performance to weight ratio.
• Quiet operation: 82 dBA @ 10;000 psi and 87 dBA @ 0 psi.
• CSA rated for intermittent duty.
• Remote controls and/or solenoid valves feature 24 volt controls.

SPECIFICATIONS:

For Use with Cylinder Type	Double-Acting
Description	PE304R; except has 1-3/4 gallon reservoir.
Valve Type	4-Way; 3 Position Tandem Center
Valve Number	9506
Valve Function	Advance Hold Return
Control Switch	Remote Motor Control (10 ft.)
Motor (4;000 rpm)	1 hp 110/115 VAC; 50/60 Hz; Single Phase
ReservoirUsable (cu. in.)	380
