Power Team

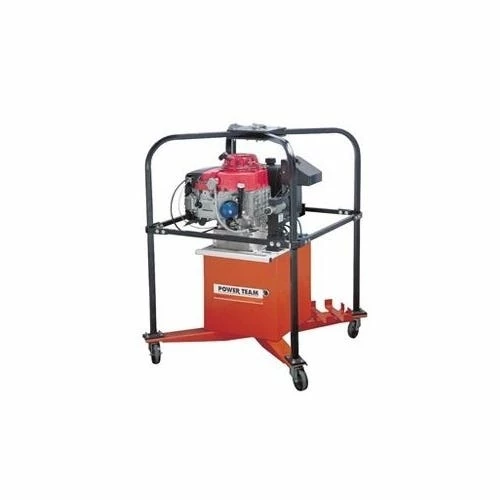

Double-Acting Max Output Gasoline Powered Pump PG4204S

FEATURES:

• Double-Acting Max Output Gasoline Powered Pump PG4204S
• Two-speed high performance pumps ideal for construction; structure moving and rigging applications.
• A logical choice at work sites where electricity or compressed air are unavailable. For single- or doubleacting cylinders at operating pressures to 10;000 psi.
• All gasoline engine/hydraulic pumps feature Posi-Check valve to guard against pressure loss when valve is shifted from advance to hold.
• A 5 gallon reservoir means adequate capacity for multi-cylinder applications. Dual element air cleaner protects engine from dusty environments.
• Heavy duty roll cage provides pick-up points for lifting. Horizontal bars on PG1203; PG1204 and PG1204S protect unit; provide hand holds for carrying.
• Rubber anti-skid insulation on bottom of reservoir resists skidding and dampens vibration. PG1200M-4 and PG1200M-4D include a pump cart with 12 wheels.
• Adjustable external pressure regulator.
• Ideal for single or multiple cylinder applications. Has a 4-cycle; 20 hp Honda engine and 20 gallon hydraulic reservoir (17 gallons usable) with low oil level sight gauge.
• Steel inroll cagein protects pump; has a lifting hook; 4″ dia. swivel casters provide mobility.
• Delivers 400 cu. in. of oil at maximum operating pressure.
• Has a solenoid operated remote valve. Sturdy molded case protects battery (not included).
• EPA Clean Air Act EVAP Certified Product

SPECIFICATIONS:

For Use with Cylinder Type	Double-Acting
Description	PG4204; except has solenoid operated remote valve.
Valve Type	4-Way solenoid
Valve Number	9516
Valve Function	Advance Hold Return
Usable(cu. in.)	3;927
Reservoir Horsepower	20
Cycle	4

“
