Power Team

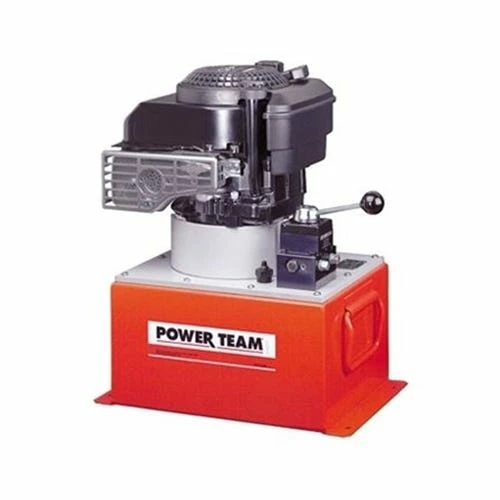

Double-Acting Gasoline Hydraulic Pump PG554

FEATURES:

• A logical choice at work sites where electricity or compressed air are unavailable.
• All gasoline engine/hydraulic pumps feature inPosi-Checkin valve to guard against pressure loss when valve is shifted from inadvancein to inholdin.
• Comes with a 9520 3-way valve for single-acting cylinders.
• 6 hp (4;5 kW) Intek Diamond Edge 4-cycle; by Briggs & Stratton. 5 gallon (19 liter) reservoir.
• Same basic pump as PE55 series electrical Vanguard pumps.
• PG553 has a 9520 3-way valve for single-acting cylinders.
• PG554 has a 9506 4-way valve for double-acting cylinders.
• For up to 150 Ton Cylinders.

SPECIFICATIONS:

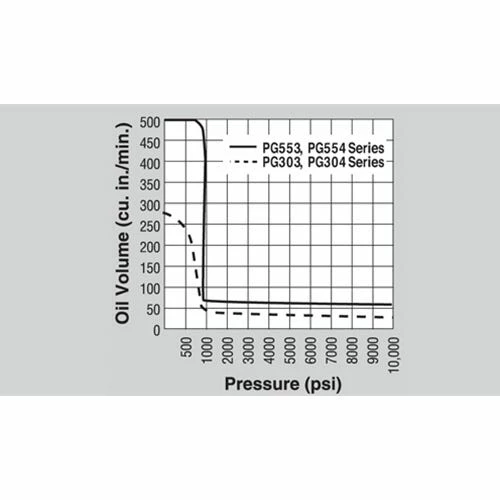

Oil Delivery @ 10;000 PSI	55 CU.
For Use with Cylinder Type	Double-Acting
Valve Type	4-Way
Valve Number	9520
Valve Function	Advance Hold Return
Reservoir Usable (cu. in.)	1;300**
Horsepower	6
Cycle	4

“
