Power Team SPX Power Team 55 Ton Hydraulic 4″ Single Acting Cylinder Spring Return C554C

• Power Team
• Single Acting Spring Return 55 Ton 2 Stroke Hydraulic Cylinder C552C
• Rugged; high quality cylinder used for fittings and pressing

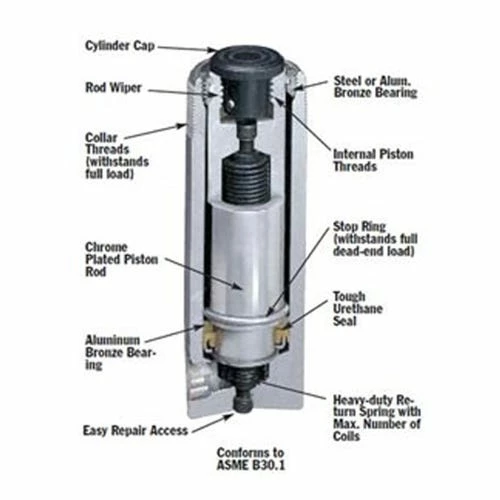

• Aluminum bronze bearing reduces wear caused by off-center loads.
• Maximum sized springs speed piston return and increase spring life.
• Solid steel cylinder body for durability.
• Chrome plated piston rod resists wear and corrosion.
• Wide range of accessories available to thread onto piston rod; collar; or onto cylinder base.
• Base mounting holes standard on 5 through 55 ton cylinders; optional on 75 and 100 ton cylinders.
• A 3/8 Inch NPTF female half coupler is standard.
• Cylinder Capacity    55 tons
• Stroke    4 inches
• Oil Capacity    46.9 cu. inch

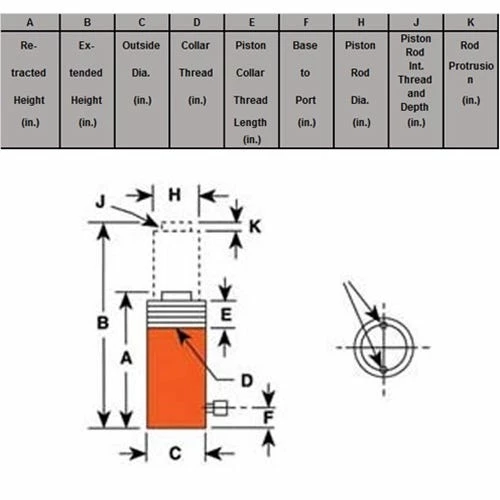

• Retracted Height – A    9 1/8 inches
• Extended Height – B    13 3/8 inches
• Outside Diameter – C    5 inches
• Collar Thread – D    5 – 12
• Piston Collar Thread Length – E    2 3/16 inches
• Base to Port – F    1 3/8 inches
• Piston Rod Diameter – H    3 1/8 inches
• Piston Rod Protrusion – K    1/8 inches
• Bore Diameter    3 3/4 inches
• Cylinder Effective Area    11.04 sq. inch
• Internal Pressure at Cap.    9959 psi
• Tons at 10000 psi    55.2

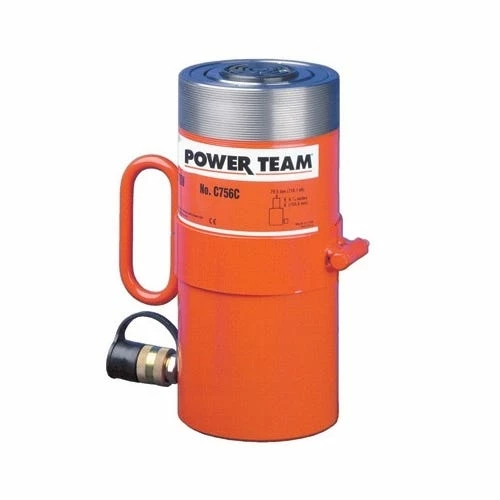

• ** Not Exact Picture

“
