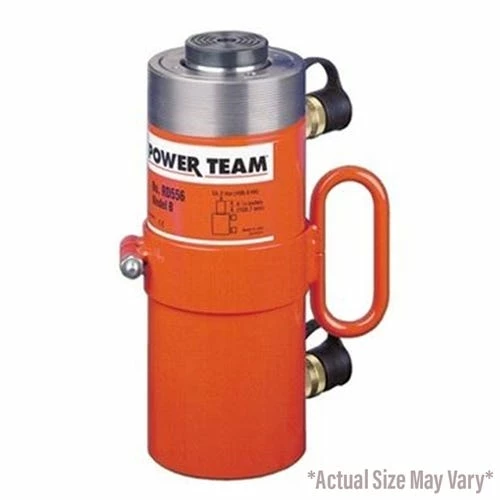

Power Team SPX Power Team 55 Ton Hydraulic 18″ Double Acting Cylinder RD5518

• Power Team
• Each cylinder has two 9796 3/8 NPTF female half couplers.
• Built-in safety relief valve prevents over-pressurization of the retract circuit.
• Feature mounting holes and collar threads.
• Order No.  : RD5518
• Cyl. Cap. (tons) Push: 55
• Cyl. Cap. (tons) Pull: 28
• Stroke (in.)  : 18 1/8
• Oil Capacity (cu.in) Push: 200
• Oil Capacity (cu.in) Pull: 102
• Load Cap Dia. (in.) : 2 5/8
• Bore Dia. (in.)  : 3 3/4
• Cyl. Eff. Area (sq.in.) Push: 11.04
• Cyl. Eff. Area (sq.in.) Pull: 5.
• Int. Press. at Cap. (psi) Push: 9;959
• Int. Press. at Cap. (psi) Pull: 9;941
• Tons at 10;000 psi  Push: 55.2
• Tons at 10;000 psi  Pull: 28.2
• Weight (lbs.)  : 142

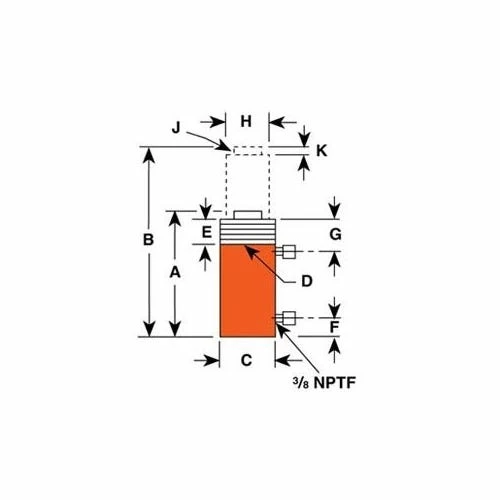

• Ret. Height (in.) : 25 7/8
• Ext. Height (in.) : 44
• Outside Dia. (in.) : 5
• Collar Thread Size (in.) : 5-12″
• Thread Length Thread (in.) : 1 5/8
• Base to Port trusion (in.) : 1  5/18
• Cylinder Piston Top to Port (in.): 2 1/2
• Piston Rod Dia. Depth (in.) : 2 5/8
• Rod Int. and (in.) : 1 11/16-8X1 3/16
• Piston Rod Protrusion (in.)  : 5/8

“
