Name: Comfortable Power Team SPX Power Team 55 Ton Hydraulic 10" Single Acting Load Return Cylinder R5510C Gift
SKU: PTR5510C
Price: 98.99 USD
Availability: InStock

Sale!

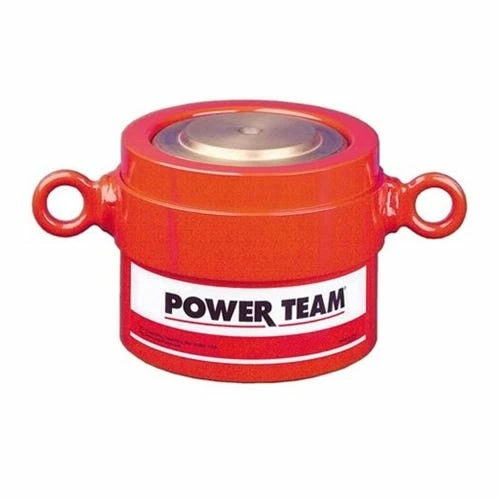

Power Team SPX Power Team 55 Ton Hydraulic 10" Single Acting Load Return Cylinder R5510C

Power Team SPX Power Team 55 Ton Hydraulic 10" Single Acting Load Return Cylinder R5510C - Image 2

Power Team SPX Power Team 55 Ton Hydraulic 10" Single Acting Load Return Cylinder R5510C - Image 3

Original price was: $328.00.Current price is: $98.99.

SKU: PTR5510C Categories: Power Team SPX, Power Team SPX Single Acting Cylinders Load Return - High Tonnage Tag: Power Team SPX

Shop with ease, buy with confidence.
Unbeatable Quality Guaranteed
Shop with Ease
Experience the difference quality makes.

Power Team
HIGH-TONNAGE; LOW CYCLE; HYDRAULIC RETURN.
Visible indicator band alerts when stroke limit is reached; overflow port (weep hole) stroke limiter prevents piston from being overextended.
Alloy heat treated piston and body for reliability and strength.
Plated piston rod increases corrosion resistance and gives superior bearing support.
Order No. : R5510C
Cyl. Cap. (tons) : 55
Stroke (in.) : 10
Oil Cap. (cu. in.): 110.4
Bore Dia. (in.): 3 3/4
Cylinder Effective Area (sq. in.) 11.04
Internal Pressure at Cap. (psi) 9;960
Tons at 10000 (psi): 55.2
Weight (lbs.) : 72

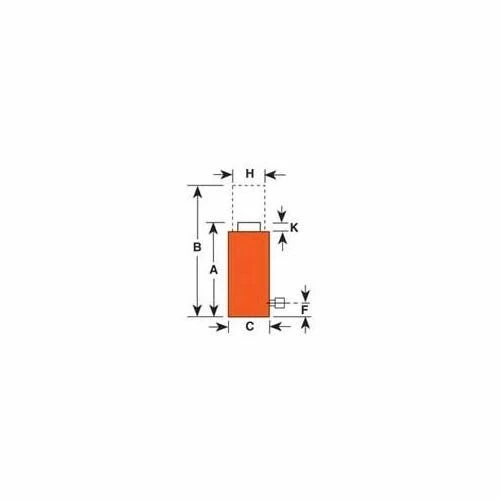

Retracted Height (in.): 12 15/16
Extended Height (in.): 22 15/16
Outside Dia. (in.): 5
Base to Port (in.): 1
Piston Rod Dia (in.): 3 3/4
Piston Rod Protrusion (in.): 1/8
