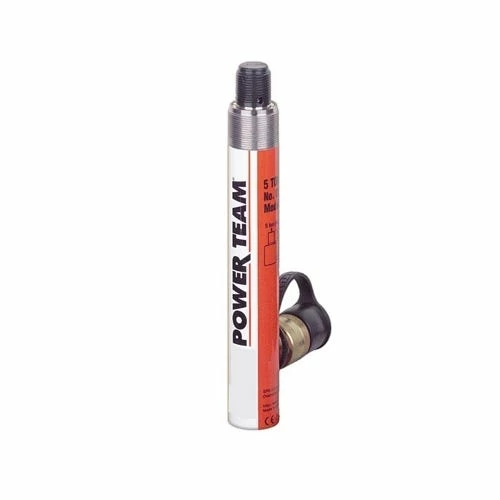

Power Team SPX Power Team 5 Ton Hydraulic 5″ Threaded Base Spring Return Cylinder C55CBT

• Power Team
• THREADED PISTON ROD END AND BASE THREADS ACCOMMODATE ACCESSORIES AND ADAPTERS.
• Threaded cylinder collars; piston rod ends; and internal base threads simplify mounting.
• A 9796 3/8 NPTF female half coupler is standard with each cylinder; oil port threads are 3/8″ NPTF.
• Order No.  : C55CBT
• Cyl. Cap. (tons) : 5
• Stroke (in.)  : 5 1/4
• Oil Cap. (cu. in.) : 5.2
• Bore Dia. (in.) : 1 1/8
• Cyl. Eff. Area (sq. in.): 0.994
• Internal Press at Cap. (psi): 10;061
• Tons at 10000 (psi) : 4.97
• Weight (lbs.)  : 4.4
• Re- tracted Height (in.): 10 1/2
• Ex- tended Height (in.): 15 3/4
• Outside Dia. (in.) : 1 1/2
• Collar Thread (in.) : 1 1/216
• Collar Thread Length (in.): 1 1/8
• Base to Port (in.): 1 7/8
• Piston Rod Dia. (in.): 1
• Piston Rod Protrusion (in.): 1 1/8
• Piston Rod Thread (NPT): 3/414
• Internal Base Thread (NPSM) (in.): 3/414

“
