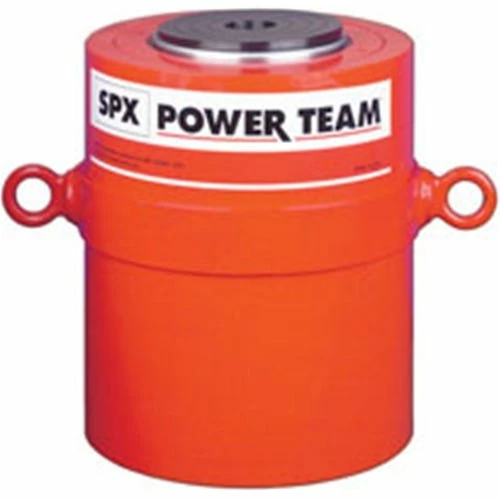

Power Team SPX Power Team 430 Ton 10″ Stroke Hydraulic Return Cylinder R43010D

• Power Team
• Financing is available – Click here for details
• HIGH-TONNAGE; LOW CYCLE; HYDRAULIC RETURN.
• Cylinders come standard with swivel caps to reduce the effects of off-center loading.
• Cylinders may be dead-ended without damage.
• Hard chrome plated; heat treated piston rod reduces wear on piston and gland nut.
• Built-in safety relief valve prevents over-pressurization of the retract circuit.
• Each cylinder has two 9796 3/8″ NPTF female half couplers.
• Order No.    : R43010D
• Cyl. Cap. (tons)  : 430
• Stroke (in.)   : 10
• Oil Capacity/Height (cu. in.)  Push: 866
• Oil Capacity/Height (cu. in.)  Return: 298
• Bore Area (in.)   : 10 1/2
• Cylinder Effective Press. (sq. in.) Push: 86.6
• Internal Tons 10000 at Cap. (psi) Push: 9;932
• Tons at Wt. (psi)  Push: 433
• Weight (lbs.)   : 673
• Retracted Height (in.)  : 20  5/16
• Extended Height (in.)  : 30  5/16
• Outside Port (in.)  : 13
• Base to Port (in.)  : 2 1/2
• Cylinder Top to Dia. (in.) : 2 61/64
• Piston Rod Dia. (in.) : 8 1/2
• Piston Rod Protrusion (in.) : 15/32

“
