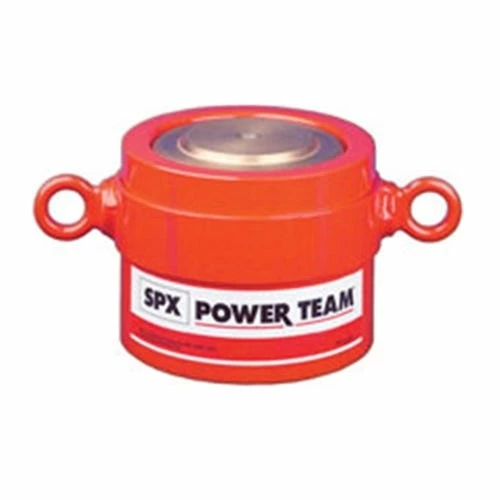

Power Team SPX Power Team 355 Ton Hydraulic 10" Single Acting Load Return Cylinder R35510C

Power Team SPX Power Team 355 Ton Hydraulic 10" Single Acting Load Return Cylinder R35510C - Image 2

Power Team SPX Power Team 355 Ton Hydraulic 10" Single Acting Load Return Cylinder R35510C - Image 3

Original price was: $396.00.Current price is: $97.99.

SKU: PTR35510C Categories: Power Team SPX, Power Team SPX Single Acting Cylinders Load Return - High Tonnage Tag: Power Team SPX

Shop with ease, buy with confidence.
Unbeatable Quality Guaranteed
Shop with Ease
Experience the difference quality makes.

Power Team
HIGH-TONNAGE; LOW CYCLE; HYDRAULIC RETURN.
Visible indicator band alerts when stroke limit is reached; overflow port (weep hole) stroke limiter prevents piston from being overextended.
Alloy heat treated piston and body for reliability and strength.
Plated piston rod increases corrosion resistance and gives superior bearing support.
Order No. : R35510C
Cyl. Cap. (tons) : 355
Stroke (in.) : 10
Oil Cap. (cu. in.) : 708.8
Bore Dia. (in.) : 9 1/2
Cylinder Effective Area (sq. in.): 70.88
Internal Pressure at Cap. (psi): 10;017
Tons at 10000 (psi) : 354.4
Weight (lbs.) : 565

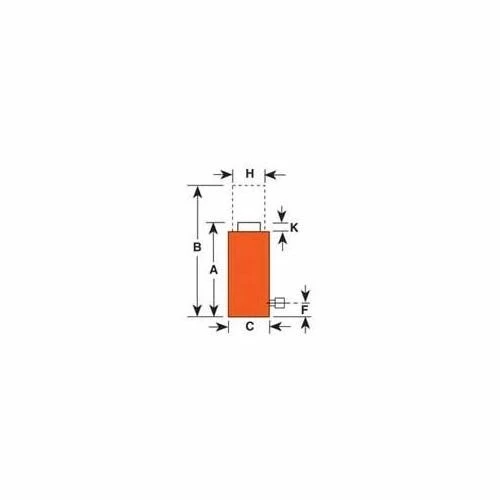

Retracted Height (in.) : 17 1/8
Extended Height (in.) : 27 1/8
Outside Dia. (in.) : 11 3/4
Base to Port (in.) : 2 1/8
Piston Rod Dia (in.): 9 1/2
Piston Rod Protrusion (in.): 1/8
