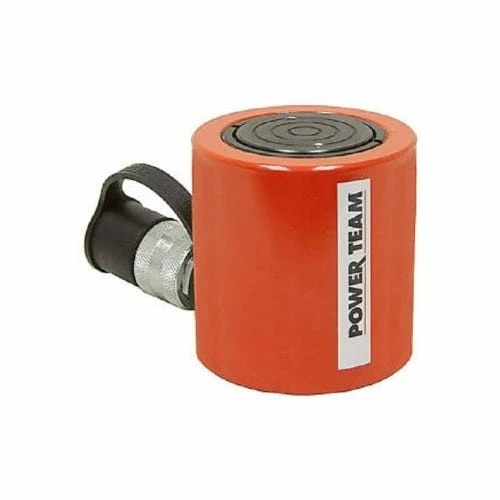

Power Team SPX Power Team 30 Ton Hydraulic 2-7/16" Single Acting Cylinder Spring Return Shorty RSS302

Power Team SPX Power Team 30 Ton Hydraulic 2-7/16" Single Acting Cylinder Spring Return Shorty RSS302 - Image 2

Power Team SPX Power Team 30 Ton Hydraulic 2-7/16" Single Acting Cylinder Spring Return Shorty RSS302 - Image 3

Original price was: $321.00.Current price is: $95.99.

SKU: PTRSS302 Categories: Power Team SPX, Power Team SPX Single Acting Cylinders Spring Return - Shorty Tag: Power Team SPX

Shop with ease, buy with confidence.
Unbeatable Quality Guaranteed
Shop with Ease
Experience the difference quality makes.

Power Team
Power Tech plated piston rods and gland nuts resist scoring and corrosion.
Heavy duty return spring (except for double-acting models) provides fast piston return & low collapsed height.
Coupler on 10 thru 50 ton models is angled upward 5 for added clearance.
Grooved piston top keeps load from sliding.
Cylinders can be dead-ended at full capacity.
Removable carrying handles on 100 ton and 250 ton models.
Order No.: RSS302
Cyl Cap. (tons) : 30
Stroke (in.) : 2 7/16
Oil Cap. (cu. in.) Push: 15.8
Oil Cap. (cu. in.) Return:
Bore Dia. (in.) : 2 7/8
Cylinder Effective Area (sq. in.) Push: 6.49
Internal Press at Cap. (psi) Push: 9;243
Tons at 10000 (psi) Push: 32.5
Weight (lbs.) : 14.7
Retracted Height (in.) : 4 5/8
Extended Height (in.) : 7 1/16
Outside Dia. (in.) : 4
Base to Port (in.) : 5/8
Piston Rod Dia. (in.) : 2 1/2
