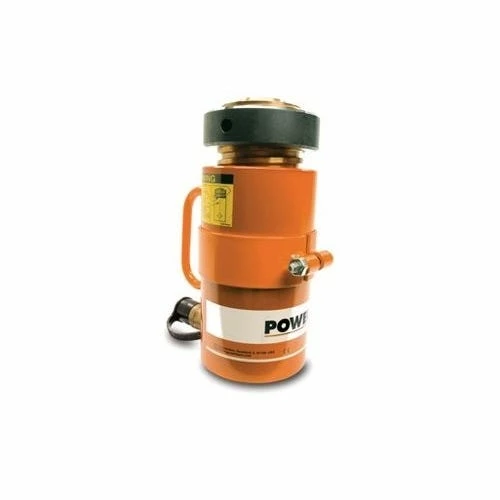

Power Team SPX Power Team 280 Ton Hydraulic 2″ Single-Acting Locking Collar Cylinder R2802L

Power Team
POSITIVE MECHANICAL LOCK TO SUPPORT LOAD.
Supports lifted load for extended periods of time with hydraulic pressure released.
Visible indicator band alerts when stroke limit is reached; overflow port (weep hole) stroke limiter prevents piston from being overextended.
All cylinders feature coated pistons to resist corrosion and abrasion.
Order No.  : R2802L
Cyl. Cap. (tons.): 280
Stroke (in.) : 2
Oil Cap. (cu. in.): 113.5
Bore Dia. (in.): 8 1/2
Cylinder Effective Area (sq. in.)    56.74
Internal Pressure at Cap. (psi)    9;870
Tons at 10000 (psi): 283.7
Weight (lbs.) : 261
Retracted Ht. (in.): 9 3/4
Extended Ht. (in.): 11 3/4
Outside Dia. (in.): 10 7/8
Base to Port (in.): 1 5/8
Piston Rod Dia. (in.)    8 1/2
Piston Rod Protrusion (in.): 1/8
Nut Thickness (in.): 2 1/4
