Power Team SPX Power Team 200 Ton Hydraulic 6" Double Acting Cylinder RD2006

Power Team SPX Power Team 200 Ton Hydraulic 6" Double Acting Cylinder RD2006 - Image 2

Power Team SPX Power Team 200 Ton Hydraulic 6" Double Acting Cylinder RD2006 - Image 3

Original price was: $385.00.Current price is: $99.99.

SKU: PTRD2006 Categories: Power Team SPX, Power Team SPX Double Acting Cylinders Tag: Power Team SPX

Shop with ease, buy with confidence.
Unbeatable Quality Guaranteed
Shop with Ease
Experience the difference quality makes.

Power Team
Finiancing is available – Click here for details
HIGH TONNAGE PREMIUM DESIGN FOR HIGH CYCLE LIFE.
Perfect for bridge lifting; building reconstruction; shipyard; utility and mining equipment maintenance.
Aluminum bronze overlay bearings provide long life; chrome plated piston rod resists corrosion.
Load cap snaps out to expose internal piston rod threads for pulling applications; threads withstand full tonnage.
Grooved ring pattern in load cap helps guard against load slippage.
Each cylinder has two 9796 3/8″ NPTF female half couplers.
Built-in safety relief valve prevents over-pressurization of the retract circuit.
Feature mounting holes and collar threads.
Order No. : RD2006
Cyl. Cap. (tons) Push: 200
Cyl. Cap. (tons) Pull: 113
Stroke (in.) : 6 5/8
Oil Capacity (cu.in) Push: 273.5
Oil Capacity (cu.in) Pull: 149.8
Load Cap Dia. (in.) : 4 1/2
Bore Dia. (in.) : 7 1/4
Cyl. Eff. Area (sq.in.) Push: 41.28
Cyl. Eff. Area (sq.in.) Pull: 22.62
Int. Press. at Cap. (psi) Push: 9;689
Int. Press. at Cap. (psi) Pull: 9;992
Tons at 10;000 psi Push: 206.4
Tons at 10;000 psi Pull: 113 .1
Weight (lbs.) : 262

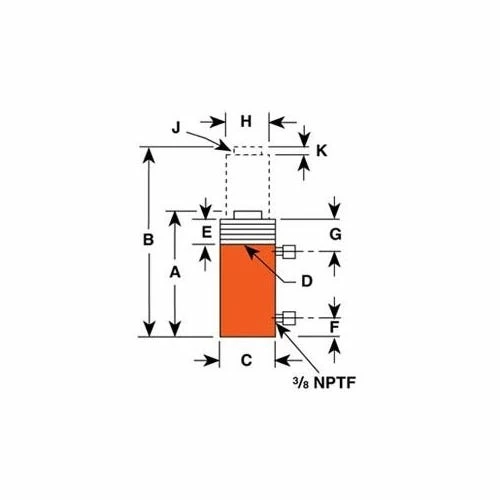

Ret. Height (in.) : 16
Ext. Height (in.) : 22 5/8
Outside Dia. (in.) : 9 1/2
Collar Thread Size (in.) : 9 1/2-12
Thread Length Thread (in.) : 1 5/8
Base to Port trusion (in.) : 2 1/2
Cylinder Piston Top to Port (in.): 2 11/16
Piston Rod Dia. Depth (in.) : 4 7/8
Rod Int. and (in.) : 3 1/4-8×2 1/4
Piston Rod Protrusion (in.) : 1 1/16
