Name: Buy Original Power Team SPX Power Team 200 Ton Hydraulic 2" Single Acting Load Return Cylinder R2002C - Powerteamspxus.com - Power Team SPX Sales
SKU: PTR2002C
Price: 98.99 USD
Availability: InStock

Sale!

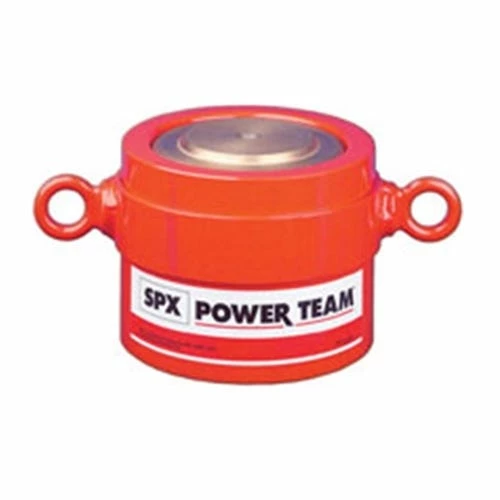

Power Team SPX Power Team 200 Ton Hydraulic 2" Single Acting Load Return Cylinder R2002C

Power Team SPX Power Team 200 Ton Hydraulic 2" Single Acting Load Return Cylinder R2002C - Image 2

Power Team SPX Power Team 200 Ton Hydraulic 2" Single Acting Load Return Cylinder R2002C - Image 3

Original price was: $342.00.Current price is: $98.99.

SKU: PTR2002C Categories: Power Team SPX, Power Team SPX Single Acting Cylinders Load Return - High Tonnage Tag: Power Team SPX

Shop with ease, buy with confidence.
Unbeatable Quality Guaranteed
Shop with Ease
Experience the difference quality makes.

Power Team
HIGH-TONNAGE; LOW CYCLE; HYDRAULIC RETURN.
Visible indicator band alerts when stroke limit is reached; overflow port (weep hole) stroke limiter prevents piston from being overextended.
Alloy heat treated piston and body for reliability and strength.
Plated piston rod increases corrosion resistance and gives superior bearing support.

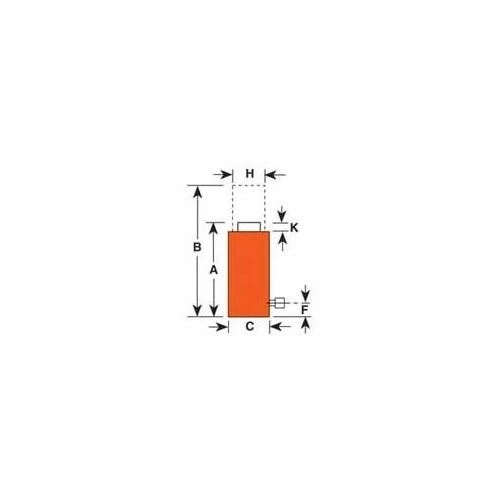

Order No. : R2002C
Cyl. Cap. (tons) : 200
Stroke (in.) : 2
Oil Cap. (cu. in.) : 82.6
Bore Dia. (in.) : 7 1/4
Cylinder Effective Area (sq. in.): 41.28
Internal Pressure at Cap. (psi): 9;690
Tons at 10000 (psi) : 206.4
Weight (lbs.) : 145
Retracted Height (in.) : 7 1/2
Extended Height (in.) : 9 1/2
Outside Dia. (in.) : 9 1/4
Base to Port (in.) : 1 5/8
Piston Rod Dia (in.): 7 1/4
Piston Rod Protrusion (in.): 1/8
