Name: Best Online Shopping Power Team SPX Sales in 2021 - Power Team SPX Power Team 100 Ton Hydraulic 6" Single Acting Load Return Cylinder R1006C
SKU: PTR1006C
Price: 98.99 USD
Availability: InStock

Sale!

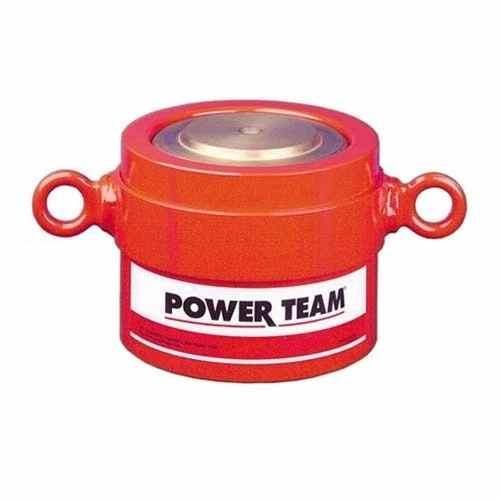

Power Team SPX Power Team 100 Ton Hydraulic 6" Single Acting Load Return Cylinder R1006C

Power Team SPX Power Team 100 Ton Hydraulic 6" Single Acting Load Return Cylinder R1006C - Image 2

Power Team SPX Power Team 100 Ton Hydraulic 6" Single Acting Load Return Cylinder R1006C - Image 3

Original price was: $353.00.Current price is: $98.99.

SKU: PTR1006C Categories: Power Team SPX, Power Team SPX Single Acting Cylinders Load Return - High Tonnage Tag: Power Team SPX

Shop with ease, buy with confidence.
Unbeatable Quality Guaranteed
Shop with Ease
Experience the difference quality makes.

Power Team
HIGH-TONNAGE; LOW CYCLE; HYDRAULIC RETURN.
Visible indicator band alerts when stroke limit is reached; overflow port (weep hole) stroke limiter prevents piston from being overextended.
Alloy heat treated piston and body for reliability and strength.
Plated piston rod increases corrosion resistance and gives superior bearing support.

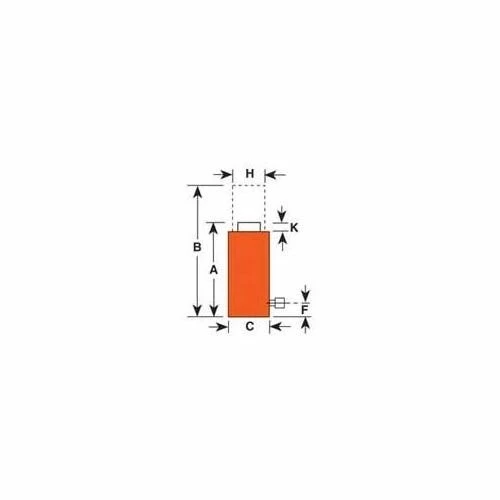

Order No. : R1006C
Cyl. Cap. (tons) : 100
Stroke (in.) : 6
Oil Cap. (cu. in.): 123.8
Bore Dia. (in.): 5 1/8
Cylinder Effective Area (sq. in.) 20.
Internal Pressure at Cap. (psi) 9;695
Tons at 10000 (psi): 103.2
Weight (lbs.) : 89
Retracted Height (in.): 9 1/2
Extended Height (in.): 15 1/2
Outside Dia. (in.): 6 1/2
Base to Port (in.): 1
Piston Rod Dia (in.): 5 1/8
Piston Rod Protrusion (in.): 1/8
