Power Team SPX Power Team 100 Ton Hydraulic 6-5/8″ Double Acting Cylinder RD1006

Power Team SPX

Power Team 100 ton hydraulic 6-5/8 double acting cylinder RD1006

Perfect for bridge lifting; building reconstruction; shipyard; utility and mining equipment maintenance

FEATURES:

• Double Acting
• Interchangeable piston head inserts provide versatility of application.
• Aluminum bronze overlay bearings provide long life; chrome plated piston rod resists corrosion
• Built-in safety relief valve prevents over-pressurization of the retract circuit.
• Load cap snaps out to expose internal piston rod threads for pulling applications; threads withstand full tonnage
• Grooved ring pattern in load cap helps guard against load slippage>
• Each cylinder has two 9796 3/8″ NPTF female half couplers
• Feature mounting holes and collar threads

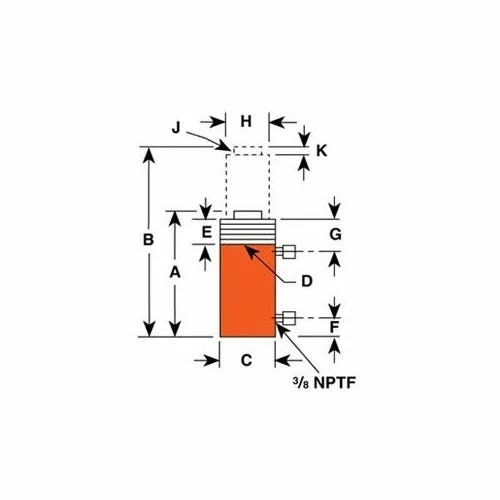

SPECIFICATIONS:

Stroke length:	6-5/8″
Piston rod diameter:	3.875″
Series/type:	RD-Series/double-Acting
Actuation/return:	Double acting/hydraulic return
Cylinder capacity:	100 Ton
Pull capacity:	44 Ton
Oil capacity:	136.7″³
Pull/return oil capacity:	58.583″³
Retracted height:	13.781″
Extended height:	20.406″
Effective area:	20.630″²
Pull cylindrical effective area:	8.840″²
Tons at 10;000 PSI:	103.10 Ton
Pull tons at 10;000 PSI:	44.20 Ton
Max pressure:	10;000 PSI
Pull internal pressure at capacity:	9;959 PSI
Bore size:	5.125″
Base to port:	1.5″
Outside diameter:	6.875″
Thread size:	6-7/8 – 12
Collar thread length:	1.625″
Piston rod internal thread and depth:	2-3/4 – 12×1-5/32
Piston rod protrusion:	0.625″
Load cap diameter:	3.875″
Cylinder piston top to port:	2.5″
Cylinder material:	Steel
Weight:	126lbs

“
