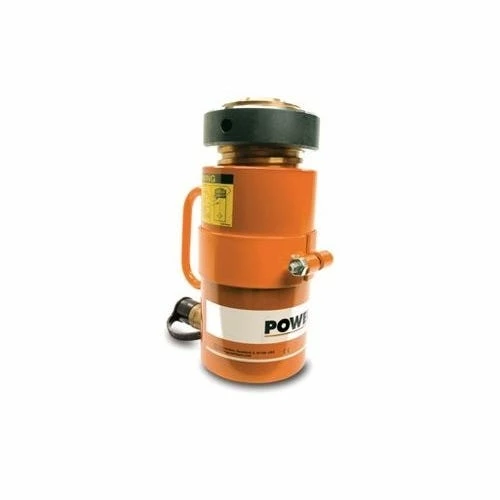

Power Team SPX Power Team 100 Ton Hydraulic 2" Single-Acting Locking Collar Cylinder R1002L

Original price was: $327.00.Current price is: $95.99.

SKU: PTR1002L Categories: Power Team SPX, Power Team SPX Single Acting Cylinders Load Return Locking Collar Tag: Power Team SPX

Shop with ease, buy with confidence.
Unbeatable Quality Guaranteed
Shop with Ease
Experience the difference quality makes.

Power Team
POSITIVE MECHANICAL LOCK TO SUPPORT LOAD.
Supports lifted load for extended periods of time with hydraulic pressure released.
Visible indicator band alerts when stroke limit is reached; overflow port (weep hole) stroke limiter prevents piston from being overextended.
All cylinders feature coated pistons to resist corrosion and abrasion.
Order No. : R1002L
Cyl. Cap. (tons.): 100
Stroke (in.) : 2
Oil Cap. (cu. in.): 41.3
Bore Dia. (in.): 5 1/8
Cylinder Effective Area (sq. in.) 20.
Internal Pressure at Cap. (psi) 9;695
Tons at 10000 (psi): 103
Weight (lbs.) : 66
Retracted Ht. (in.): 7 1/4
Extended Ht. (in.): 9 1/4
Outside Dia. (in.): 6 1/2
Base to Port (in.): 1
Piston Rod Dia. (in.) 5 1/8
Piston Rod Protrusion (in.): 1/8
Nut Thickness (in.): 1 3/4
