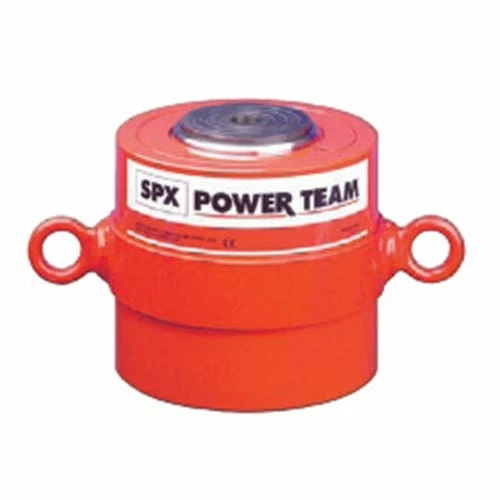

Power Team SPX Power Team 100 Ton 2″ Stroke Hydraulic Return Cylinder R1002D

• Power Team
• HIGH-TONNAGE; LOW CYCLE; HYDRAULIC RETURN.
• Cylinders come standard with swivel caps to reduce the effects of off-center loading.
• Cylinders may be dead-ended without damage.
• Hard chrome plated; heat treated piston rod reduces wear on piston and gland nut.
• Built-in safety relief valve prevents over-pressurization of the retract circuit.
• Each cylinder has two 9796 3/8 NPTF female half couplers.
• Order No.    : R1002D
• Cyl. Cap. (tons)  : 100
• Stroke (in.)   : 2
• Oil Capacity/Height (cu. in.)  Push: 41.2
• Oil Capacity/Height (cu. in.)  Return: 19.2
• Bore Area (in.)   : 5 1/8
• Cylinder Effective Press. (sq. in.) Push: 20.6
• Internal Tons 10000 at Cap. (psi) Push: 9;695
• Tons at Wt. (psi)  Push: 103
• Weight (lbs.)   : 54
• Retracted Height (in.)  : 6 41/64
• Extended Height (in.)  : 8 41/64
• Outside Port (in.)  : 6 1/2
• Base to Port (in.)  : 1
• Cylinder Top to Dia. (in.) : 2 13/64
• Piston Rod Dia. (in.) : 3 3/4
• Piston Rod Protrusion (in.) :    9/32

“
