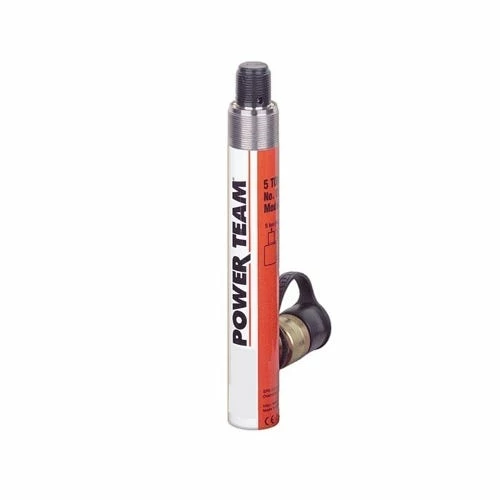

Power Team SPX Power Team 10 Ton Hydraulic 6" Threaded Base Spring Return Cylinder C106CBT

Original price was: $354.00.Current price is: $97.99.

SKU: PTC106CBT Categories: Power Team SPX, Power Team SPX Single Acting Cylinders Spring Return Threaded End Tag: Power Team SPX

Shop with ease, buy with confidence.
Unbeatable Quality Guaranteed
Shop with Ease
Experience the difference quality makes.

Power Team
THREADED PISTON ROD END AND BASE THREADS ACCOMMODATE ACCESSORIES AND ADAPTERS.
Threaded cylinder collars; piston rod ends; and internal base threads simplify mounting.
A 9796 3/8″ NPTF female half coupler is standard with each cylinder; oil port threads are 3/8″ NPTF.
Order No. : C106CBT
Cyl. Cap. (tons) : 10
Stroke (in.) : 6 1/8
Oil Cap. (cu. in.) : 13.9
Bore Dia. (in.) : 1 11/16
Cyl. Eff. Area (sq. in.): 2.236
Internal Press at Cap. (psi): 8;948
Tons at 10000 (psi) : 11.2
Weight (lbs.) : 10.3
Re- tracted Height (in.): 11 1/2
Ex- tended Height (in.): 17 5/8
Outside Dia. (in.) : 2 1/4
Collar Thread (in.) : 2 1/414
Collar Thread Length (in.): 1 1/8
Base to Port (in.): 1 11/16
Piston Rod Dia. (in.): 1 1/2
Piston Rod Protrusion (in.): 1 1/16
Piston Rod Thread (NPT): 1 1/411 1/2
Internal Base Thread (NPSM) (in.): 1 1/411 1/2
