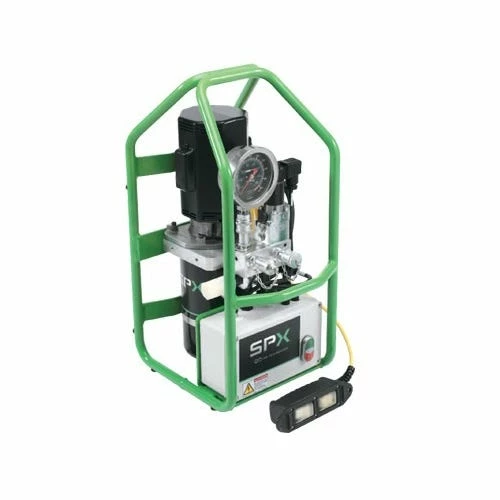

Power Team SPX Electric Hydraulic Torque Wrench Pump PE39

• SPX Power Team Torque Wrench Pumps
• 700 bar / 10;000 PSI
• The SPX PE39 is compact and capable of being used in a vertical or horizontal orientation. It is based on proven pump design for reliability in rugged torque wrench applications to support operation and maintenance requirements.
• Over 100;000 cycles
• Continuous duty up to 50C / 122F ambient (optional cooling kit)
• Proven design: proven reliability
• Light weight and portable: 39 lbs. / 17.7 kg (without oil)
• Vertical or horizontal operation
• Removable control pendant (15 ft/ 5 m cord length)
• Removable 4 calibration capable gauge
• Universal Motor for reduced voltage applications (up to -20% nominal voltage)
• 4-way valve (not for lifting applications)
• 1/4″ NPT Fittings
• Easily adjusted pressure regulator (relief) valve
• Fixed 1500 psi / 103 Bar pressure retract relief valve
• Maximum Oil Capacity: 0.5 Gallons / 1.89 L (to fill line);  0.4 Gallons / 1.51L (useable)
• Temperature: -13F to 122F / -25C to +50C (If temperatures are at extremes of the operating range; it is recommended to use hydraulic oils that are rated for those temperatures. Refer to service manuals and cooling options)
• Sound Level: 87 92 dB
• Pressure: 0 10;000 psi (0 690 bar)
• Typical Flow: 225 cu-in/min 39 cu-in/min;  3.7 L/min 0.64 L/min

“
