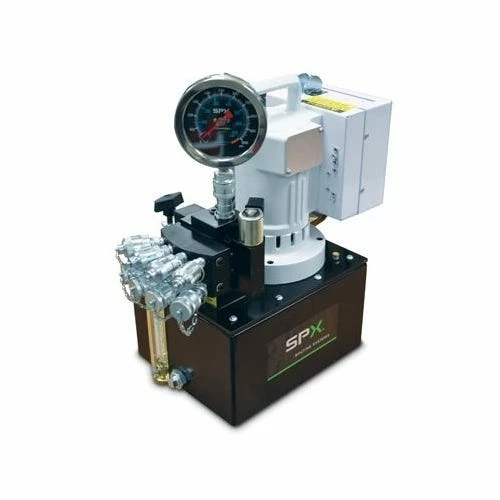

Power Team SPX Classic Series Electric Hydraulic Pump Single Tool 110/115V PE55TWP-4-220-BS

• 700 BAR (10;000 PSI) CLASSIC SERIES ELECTRIC HYDRAULIC PUMP
• The PE55TWP-BS has been the market leading electric pump for over 30 years & is therefore tried & tested. A simple; light-weight design with a recent upgrade that has created a cost-effective workhorse.
• Quality means Lower Life-Cycle Costs:
• Over 100;000 cycles
• Continuous duty up to 50C (122F) ambient
• Proven design = Proven reliability
• Enhanced Usability:
• Two Speed High Performance pump
• Retract side internal relief valve protects tool
• Hand remote
• Four-tool manifold (-4 models only) allow use of up to four tools simultaneously
• 4 calibration capable gauge
• Use with single or double acting tools
• Designed with Safety in Mind:
• Easily adjusted pressure regulator (relief) valve
• 103 bar (1;500 psi) pressure retract relief valve
• Size (L x W x H): 18.5″ x 9.5″ x 19.2″
• Weight: 65 lb [without oil]
• Maximum Oil Capacity: 5.3 L (1.4 Gallons) [usable]
• Operating Environment: -25C to +50C
• (When operating near temperature extremes; it is
• recommended to use hydraulic oils that are rated
• for those temperatures. Refer to service manuals
• and cooling options)
• Sound Level: 87-92 dBA (max)
• Pressure:  0 – 700 bar (0 – 10;000 psi)
• Typical Flow:  11.5 L/min – 0.9 L/min
• (704 in³/min – 56 in³/min)
• Power:
• 1-1/8 hp Universal Motor
• 110/115V – 50/60 Hz (25 amps)

“
