Power Team

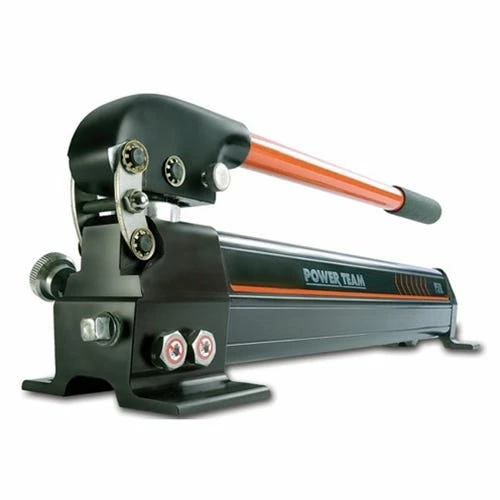

SPX Aluminum Hydraulic Hand Pump 2 Speed PTP59L

SPECIFICATIONS:

• More usable oil volume – use with larger or longer stroke cylinders.
• True unloading valve set for 850 PSI (59 Bar) provides more efficiency and lower handle force.
• Link design reduces handle effort by 40%.
• Durable aluminum reservoir; manifold; and end cap.
• Ergonomic non-slip handle grip provides more comfort.
• Spring loaded handle lock incorporated into handle.
• .72 in. Volume per stroke; 69 in. Reservoir Oil Capacity.

SPECIFICATIONS:

Order Number	For Use With	Speed	Volume per Stroke (cu. in)		Maximum Pressure (psi)		Handle Effort (lbs.)	Reservoir		Oil Port (in.)	Weight (lbs.)
LP	HP	LP	HP	Oil Capacity (cu. in.)	Usable Oil Capacity (cu. in.)
P59L	Single-Acting Cylinders*	2	0.72	0.15	850	10;000	104	69	66	3/8 NPTF	8.9

“
