JET

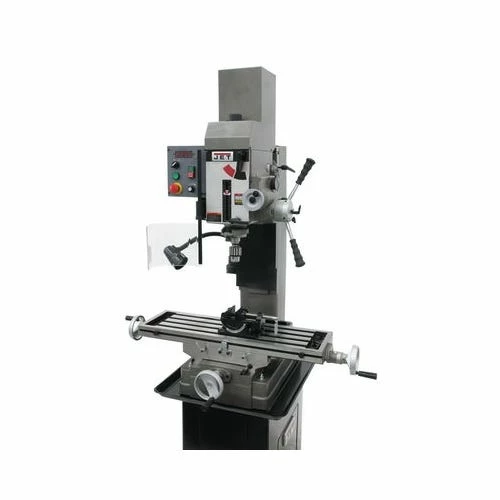

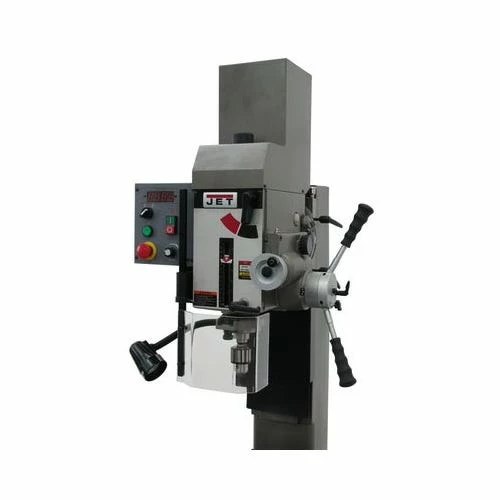

JMD-45VSPFT Variable Speed Geared Head Square Column Drill Mill with Power Downfeed 351051
Engineered to maximize production; the heavy-duty JMD-45VSPFT variable speed Square Column Geared Head Mill Drill with power downfeed and tapping capability delivers the rigidity needed to perform a variety of precision drilling applications in high intensity environments.
Heavy-duty design allows for a variety of precision drilling applications
Full power to the cutting tools through Variable Speed geared head
Square column with dovetail ways
CSA/CUS: Following strict guidelines and electrical requirements; this JET Mill Drill is CSA/CUS certified
Spindle guard
Work Lamp
Calibrated fine down feed built in
Easy to read internal depth gauge
Head tilts left & right 90
Rapid spindle speed changes through quick-select gear shift levers
Forward/reverse switch
Power Downfeed standard
Milling table allows for movement
R8 spindle allows use of all mill tooling
Drilling Capacity (In.): 1-1/2
Face Mill Capacity (In.): 4
End Mill Capacity (In.): 3/4
Swing (In.): 19-11/16
Max Distance Spindle To Table (In.): 18-1/8
Spindle Taper (In. X Tpi): R8
Spindle Travel (In.): 5
Spindle Travel Auto (In.): 4-1/4
Quill Diameter (In.): 3
Column Diameter (In.): 7-7/8 X 7-5/8 Square
Number Of Spindle Speeds: Variable Speed
Range Of Spindle Speeds (Rpm): 50-2500
Table Size (L X W) (In.): 9-1/2 X 32-1/4
Table Longitudinal Travel (In.): 20-1/2
Base Dimensions (In.): 26-11/16 X 15-15/16
Motor (Hp): 1-1/2hp; 115/230v; 1ph
Overall Dimensions (L X W X H) (In.): 29 X 36 X 50
Weight (Lbs.): 767
