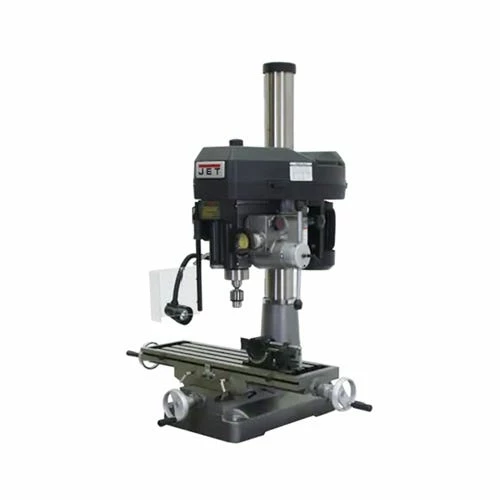

Jet JMD-18PFN Mill/Drill With Power Downfeed 115/230V 1Ph 350020

Jet

JMD-18PFN Mill/Drill With Power Downfeed 115/230V 1Ph 350020

Mill drills are a lighter alternative to a milling machine. These combine a belt driven drill press with the dual coordinate abilities of the milling machine’s table for flexibility and efficiency. A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit. Although light in construction; the JMD Milling Drilling Machines possess the advantages of space-saving versatility; affordability and light machining capability.

FEATURES:

• One-piece cast iron column for added support.
• Belt cover with quick slide latch allows faster belt adjustment to change spindle speeds.
• Drill Press angle vise.
• UL Listed motor (8201VS).
• Positive quick-stop knob and easy to read internal depth gauge.
• Heavy-duty power downfeed with manual fine feed (JMD-18PFN).
• 360° head swivel.
• ½” drill chuck; chuck arbor.
• Draw bar and Drill Chuck Guard.
• Adjustable Carbide facemill.

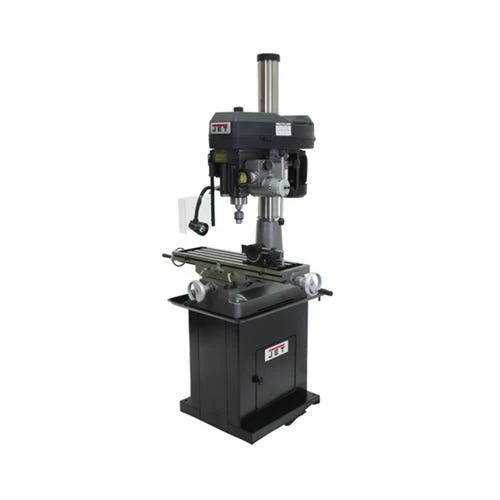

• Mill Drill Stand; p/n 320020; shown in some images; is optional.

SPECIFICATIONS:

Drilling Capacity (In.)	1-1/4
Face Mill Capacity (In.)	3
Swing (In.)	15-7/8
Max Distance Spindle to Table (In.)	28
Spindle Taper (In. x TPI)	R-8
Quill Diameter (In.)	3
Range of 12 Spindle Speeds (RPM)	150 – 3;000
Table Size (L x W) (In.)	9-1/2 x 31-3/4
Work Table Weight Capacity (Lbs.)	400
T-Slots Number and Size (In.)	4 and 5/8
Motor (HP)	2 HP;115/230V; 1 Ph; Prewired 115V
Overall Dimensions (L x W x H) (In.)	47 x 40 x 51
