Jet Tools

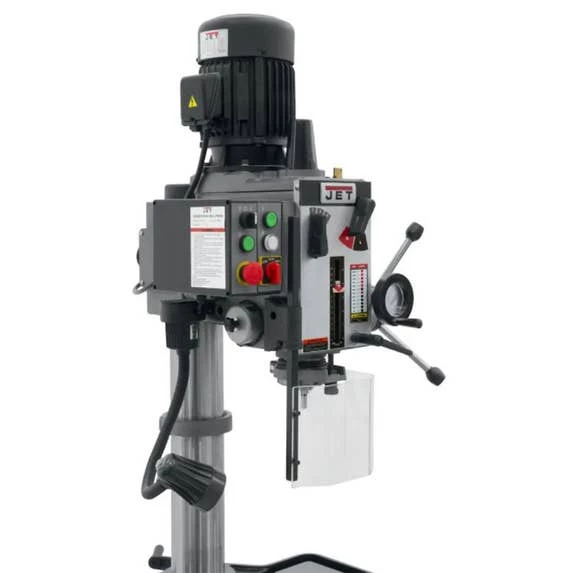

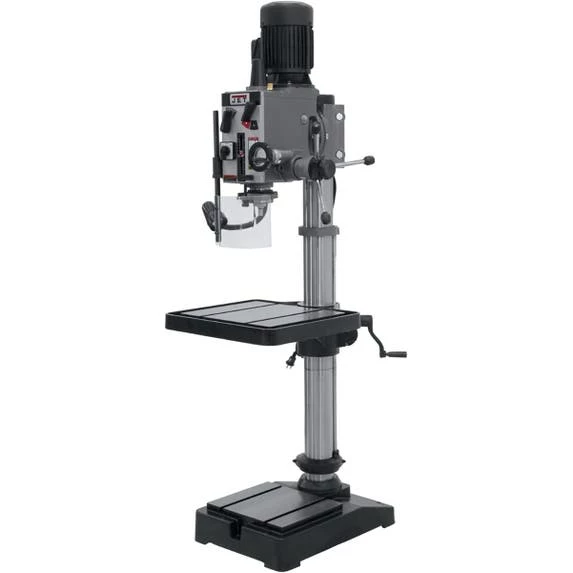

GHD-20 20″ Gear Head Drill Press 230V/3Ph 354020

JET Geared Head Drill Presses are ideal for repetitive drilling in a wide variety of materials. These drill presses are equipped with helical gears for smooth and quiet operation, a quick-release drill ejector and English/Metric depth gauge. T-slotted table, 8 spindle speeds, and a head and table that rotate 360° around the column enhance overall use and supply premier results.

Features:

Easily accessible table raiser.
Head tilts left or right.
Large production table and T-slotted base.
Three power downfeed rates.

Specifications:

Drills to Center of Circle (In.)	20
Spindle Travel (In.)	5
Style (Type)	Geared Head
Drilling Capacity Mild Steel (In.)	1-1/4
Drilling Capacity Cast Iron (In.)	1-1/2
Distance Column to Spindle (In.)	10
Table Size (L x W) (In.)	21-3/4 x 19-1/2
Spindle Distance to Base (In.)	44-15/16
Spindle Distance to Table (Max.) (In.)	30-1/2
Spindle Taper (In. x TPI)	MT-3
Quill Diameter (In.)	3
Table Travel (In.)	25-1/2
Range of Spindle Speeds (RPM)	60, 120, 130, 230, 260, 450, 460, 800, 900, 1,500, 1,600, 3,000
Quill Feed	Manual
T-Slot Centers (In.)	9
Work Table Weight Capacity (Lbs.)	275
Base Work Table (In.)	15-1/4 x 13
Column Diameter (In.)	4-1/2
Base Dimensions (In.)	26 x 18
Motor (HP)	2 HP (2 Speed) , 230V, 3Ph
Overall Dimensions (L x W x H) (In.)	32 x 24 x 71
